Product Description:

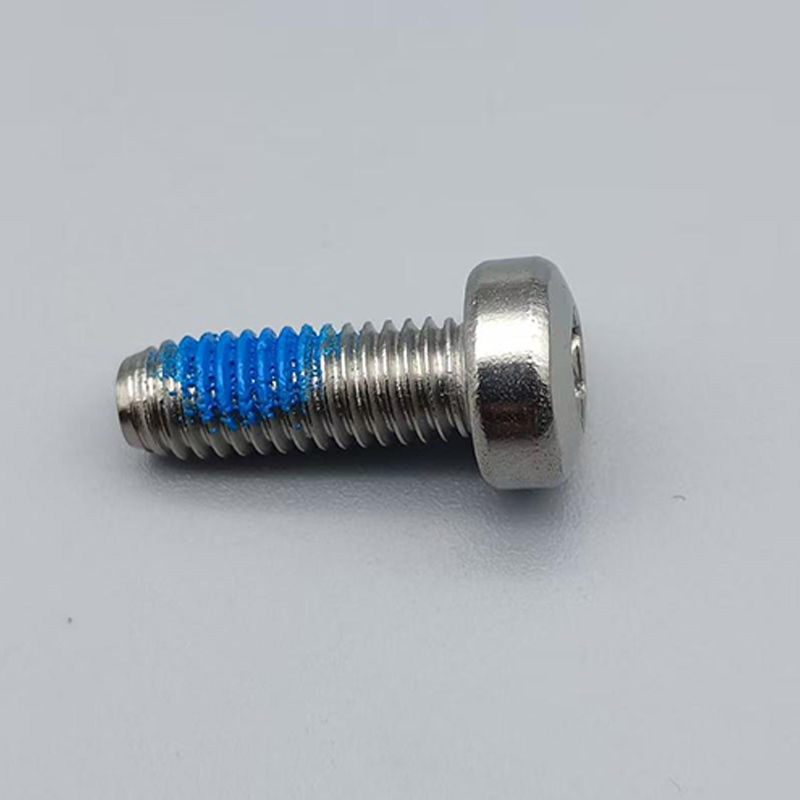

ISO14583 Hexaspherical Socket Pan Head Machine Screws (also known
as Torx screws) are fasteners designed with hexagonal star shaped
grooves that combine the anti slip advantages of Torx heads with
standardized design, making them suitable for high-precision and
high-strength industrial scenarios.
Features:
Strong anti slip performance, hexagonal star shaped groove design
increases the contact area between the screwdriver and the screw,
reducing the risk of slipping, especially suitable for high torque
operations.High torque transmission, compared to traditional
Phillips or Phillips screws, the Phillips head can withstand
greater tightening force, reducing the probability of screw or tool
damage, making it very suitable for automation.
Technical Parameters:
| d | M2 | M3 | M4 | M5 | M6 | M8 | M10 |
| P | 0.4 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| a | MAX | 0.8 | 1 | 1.4 | 1.6 | 2 | 2.5 | 3 |
| dk | MAX | 4 | 5.6 | 8 | 9.5 | 12 | 16 | 20 |
| MIN | 3.7 | 5.3 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 |
| da | MAX | 2.6 | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 |
| k | MAX | 1.6 | 2.4 | 3.1 | 3.7 | 4.6 | 6 | 7.5 |
| MIN | 1.46 | 2.26 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 |
| r | MAX | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 |
| R |
| 3.2 | 5 | 6.5 | 8 | 10 | 13 | 16 |
| x | MAX | 1 | 1.25 | 1.75 | 2 | 2.5 | 3.2 | 3.8 |
| A |
| 1.75 | 2.8 | 3.95 | 4.5 | 5.6 | 7.95 | 8.95 |
| t | MAX | 0.77 | 1.27 | 1.66 | 1.91 | 2.42 | 3.18 | 4.02 |
| MIN | 0.63 | 1.01 | 1.27 | 1.52 | 2.02 | 2.79 | 3.62 |
Applications:
In the automotive manufacturing industry, thread rolling technology
is employed to enhance anti-loosening properties,Often used for the
assembly of engine oil pumps, vacuum pumps, and transmissions. The
connection points supporting dynamic loads in industrial machinery,
including machine tools and hydraulic systems, rely on the high
strength provided by rolled threads.Furthermore, in the assembly of
new energy battery modules, Hexalobular Socket Pan Head Self
Tapping Screws can be used in lithium battery brackets or metal
shells. This application helps prevent material weakening that
might occur with traditional thread cutting methods.
