Surface Color Zinc Carbon Steel Cross Self Tapping Screw

Coarse Thread Bugle Head Screw Corrosion Resistant Rust Resistant Drywall Screws

Company Certificate:

Product Description:

Drywall Screws Application: Drywall screws (self tapping screws) are the main fasteners used to fix gypsum boards in indoor decoration, especially suitable for ceiling and partition construction.During installation, it is necessary to use fine thread dry wall nails (suitable for light steel keel) or coarse thread drywall screws (suitable for wooden keel), with a length of usually 25-35mm (single-layer board) or 38-50mm (double-layer board).During construction, screws should be evenly inserted into the keel at a spacing of 15-20cm, and the screw's head should be slightly recessed (1-2mm below the board surface) for subsequent coating coverage.For the ceiling, it is recommended to increase the spacing to 10-15cm to enhance load- bearing capacity; A distance of 10-15cm should be reserved at the edge of the partition wall to avoid cracking.Normal use of black phosphating drywall nails can be replaced with galvanized or stainless steel materials in damp areas such as kitchens and bathrooms to ensure long-term stability.

Drywall Screws Advantage: Easy installation and high construction efficiency Drywall screws are self tapping designs that do not require pre drilling and can directly penetrate gypsum boards and keels (wood/light steel). If carbon steel or 410 stainless steel is used as the material, an electric screwdriver can be used to quickly fix them in bulk, improving construction efficiency. Cost economy Drywall screws are inexpensive and have uniform specifications, making them suitable for large-scale construction and reducing material and labor costs. High strength fixation The thread design (coarse/fine) of drywall screws is suitable for different keel materials, with strong grip to avoid loosening or sagging of gypsum boards.Dry wall screws, also known as horn screws, have a "horn shaped" design that disperses pressure and reduces the risk of surface cracking on gypsum boards.

Technical Parameters:

d		3.5	4	4.3	5.1	5.5
d	Max	3.7	4	4.3	5.1	5.5
	Min	3.4	3.7	4	4.8	5.2
dk	Max	8.5	8.5	8.5	8.5	8.5
	Min	8.14	8.14	8.14	8.14	8.14
L	25-130mm

Drive Style	Phillips
Corrosion Resistance	Yes
Thread Diameter	3.5-5.5mm
Head Style	Bugle Head
Thread Type	Coarse
Length	25-130mm

This table describes the technical parameters of a black fine thread gypsum board drywall screw or wood drywall screw or black drywall screw with bugle head that has a length of 25-130mm, a thread diameter of 3.1-5.2mm, a coarse thread type, high sharpness, and high durability.

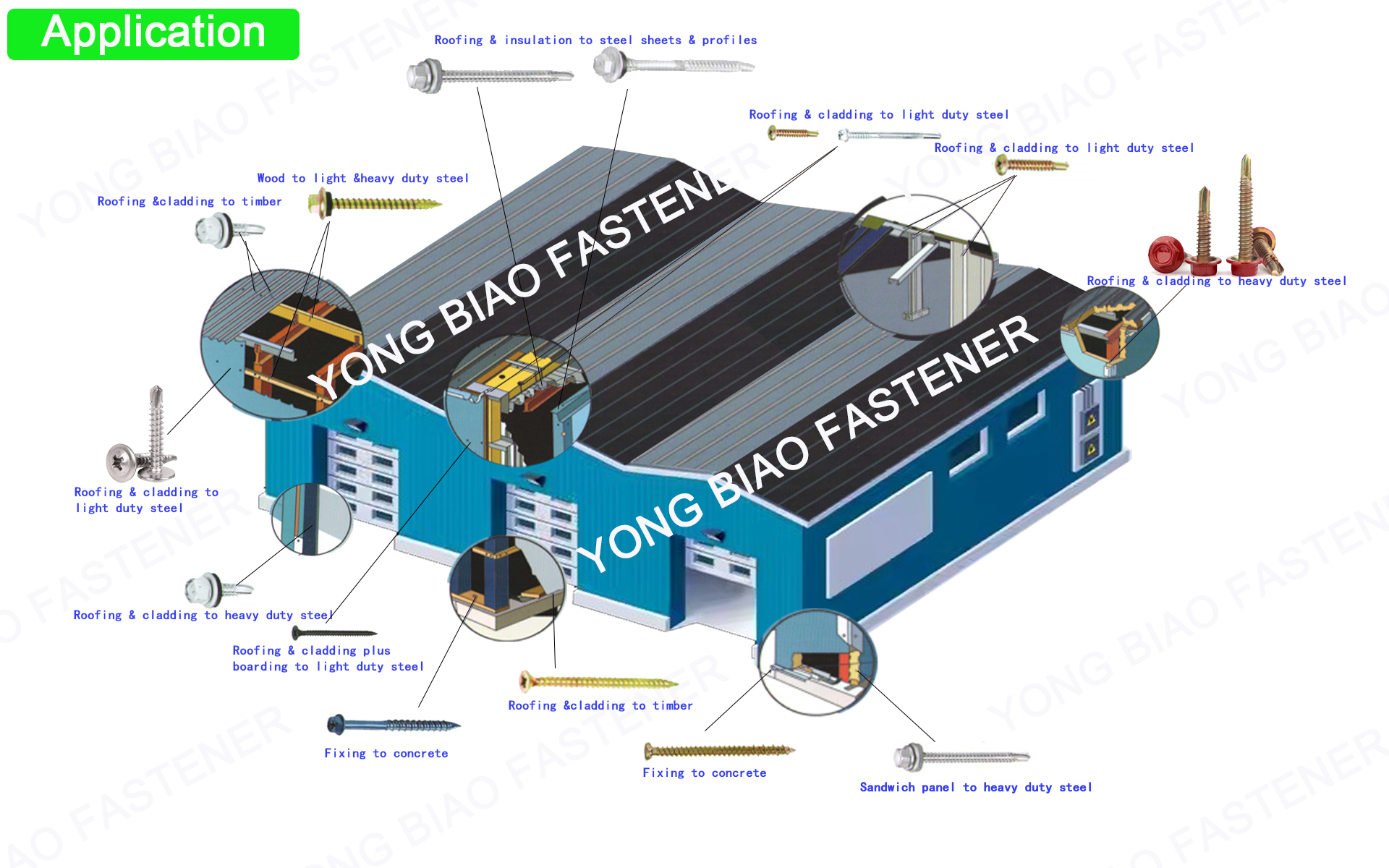

Application:

Packaging:

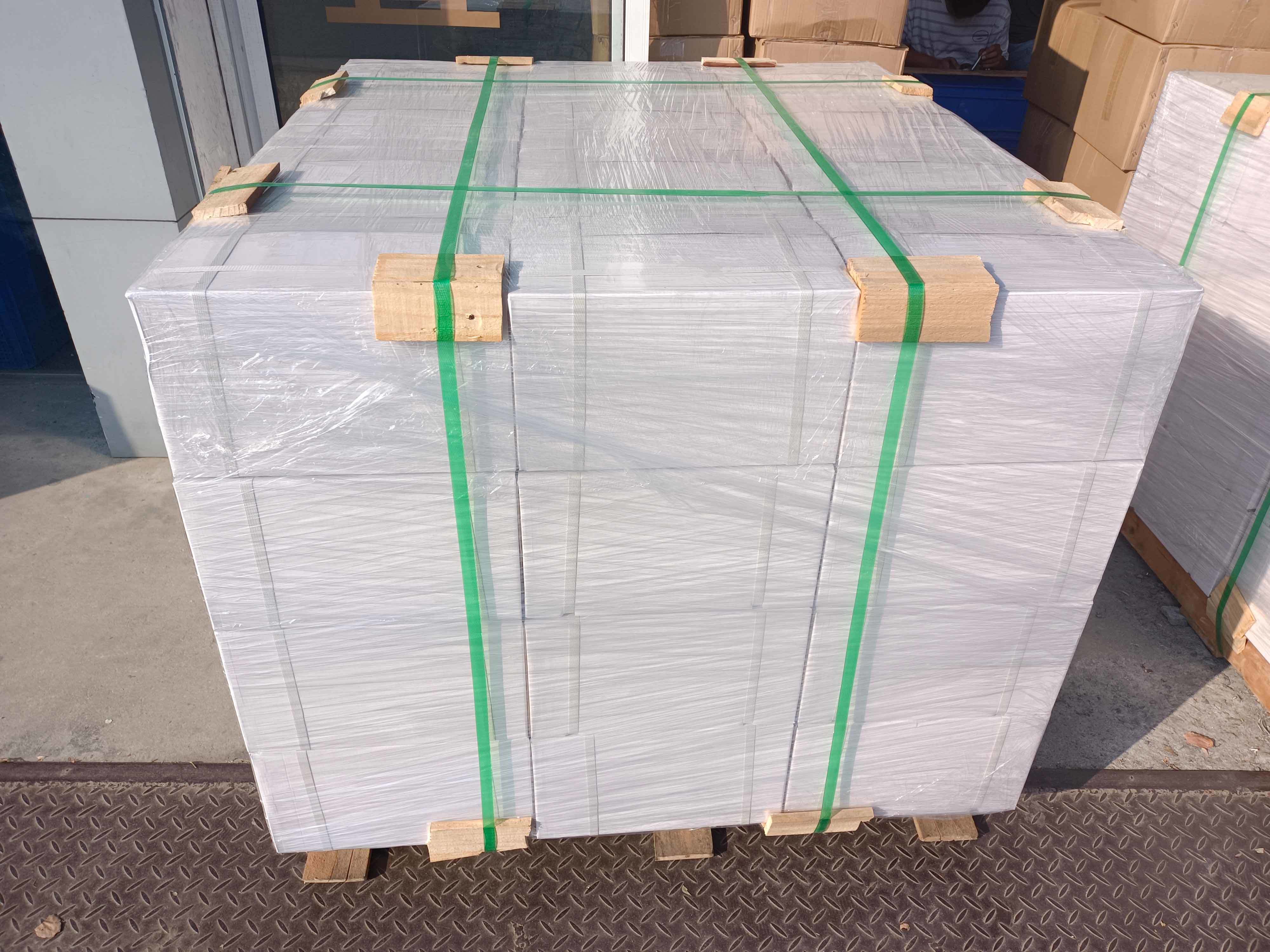

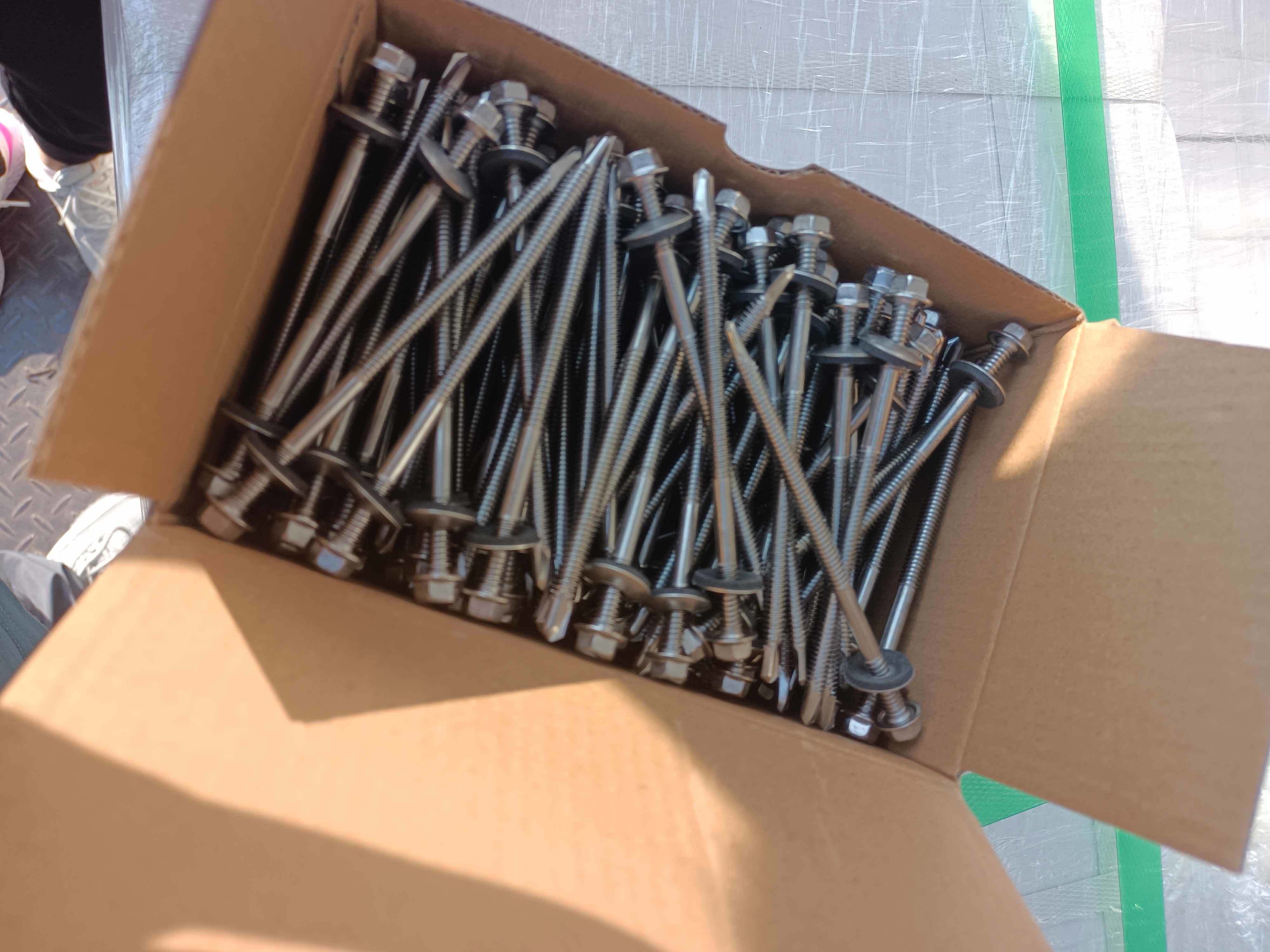

Carton Packaging	Outer Cartonbox Packaging	Pallet Packaging
Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.	The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.	The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
