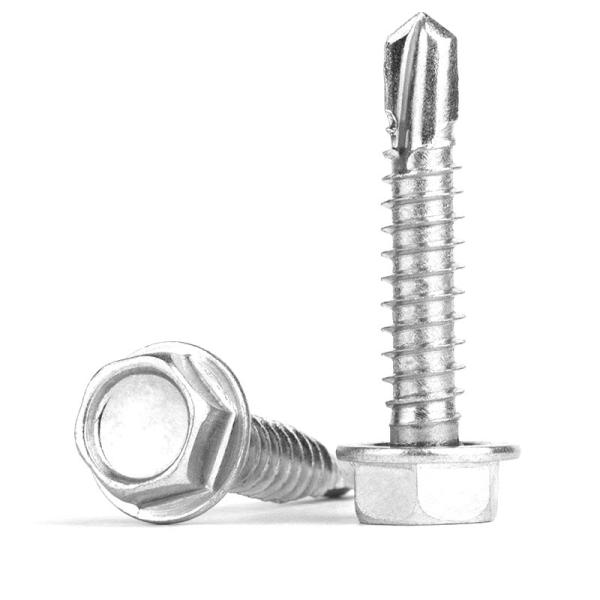

Product Description:
As a trademark product of YB, our Self Drilling Screw is made from
high-quality materials to ensure long-lasting durability and
excellent performance. Our screws are available in a range of
sizes, but the #8 size is ideal for applications that require a
strong and secure fix.
At YB, we offer a range of services to meet the needs of our
customers, including OEM, ODM, and customized solutions. We
understand that each customer has unique requirements and we strive
to provide the best possible service to meet their needs.
Our payment terms are flexible, with a focus on providing our
customers with the best possible value. We accept TT payments and
work with our customers to find the best payment solution for their
needs.
When it comes to quality, our Self Drilling Screw is available in a
range of grades, including 4.8, 6.8, 8.8, 10.9, and 12.9. Each
grade is designed to meet specific requirements and provides
excellent performance in a range of applications.
Overall, the YB #8 Self Drilling Screw is the perfect solution for
anyone looking for a strong and secure fix for materials on
concrete, brick, and masonry surfaces. With its Self-Tapping Anchor
Blot design, high-quality materials, and range of services and
payment options, this screw is an excellent choice for anyone
looking for a reliable and long-lasting fix.
Features:
- Product Name: Stainless Steel Hex Self Drilling Screw
- Specification: M2-m10
- Thread Diameter: 0.164 Inch
- Quality: DIN,GB,ISO
- Grade: 4.8/6.8/8.8/10.9/12.9
- Payment: TT
- Features:
- Fasteners Self-Tapping Screw
- Self-Tapping Anchor Blot
- Drilling Microscrew
Technical Parameters:
| D | ST2.9 | ST3.5 | (ST3.9) | ST4.2 | ST4.8 | (ST5.5) | ST6.3 |
| P | Thread Pitch | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
| A | MAX | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
| C | MIN | 0.4 | 0.6 | 0.6 | 0.8 | 0.9 | 1 | 1 |
| dc | MAX | 6.3 | 8.3 | 8.3 | 8.8 | 10.5 | 11 | 13.5 |
| MIN | 5.8 | 7.6 | 7.6 | 8.1 | 9.8 | 10 | 12.2 |
| E | MIN | 4.28 | 5.96 | 5.96 | 7.59 | 8.71 | 8.71 | 10.95 |
| K | MAX | 2.8 | 3.4 | 3.4 | 4.1 | 4.3 | 5.4 | 5.9 |
| MIN | 2.5 | 3 | 3 | 3.6 | 3.8 | 4.8 | 5.3 |
| kw | MIN | 1.3 | 1.5 | 1.5 | 1.8 | 2.2 | 2.7 | 3.1 |
| R | MAX | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 |
| S | MAX | 4 | 5.5 | 5.5 | 7 | 8 | 8 | 10 |
| MIN | 3.82 | 5.32 | 5.32 | 6.78 | 7.78 | 7.78 | 9.78 |
| dp | 2.3 | 2.8 | 3.1 | 3.6 | 4.1 | 4.8 | 5.8 |
Applications:
The YongBiao self-drilling screws are suitable for various product
application occasions and scenarios. It is excellent for use in
construction, carpentry, and other DIY projects. Our self-drilling
microscrew is perfect for drilling into metals, plastics, and wood,
making it versatile and easy to use. The hex with flange hole bore
screw is perfect for use in areas that need a secure fitting, such
as walls and ceilings.
If you need a self-tapping anchor blot, YongBiao has got you
covered. Our screws are designed to be durable and have high
strength, ensuring that they can withstand the toughest conditions.
We offer OEM and ODM services, so you can customize the screws
according to your requirements. The thread diameter of our screws
is 0.164 inches, and they are of the hexagon head self-drilling
tapping screws type.
We accept multiple payment terms, including EXW, FOB, CIF, DDP, and
DDU, making it easy for you to purchase our products. We can
provide up to 500 tons per month, ensuring that you can get the
screws you need when you need them.
Our screws are marked according to customer's requirements, making
them a perfect fit for any project. Whether you need screws for
construction, carpentry, or DIY projects, YongBiao has the perfect
self-drilling screws for you.
